Technical parameters:
/ LZD- 01 / Scope of application

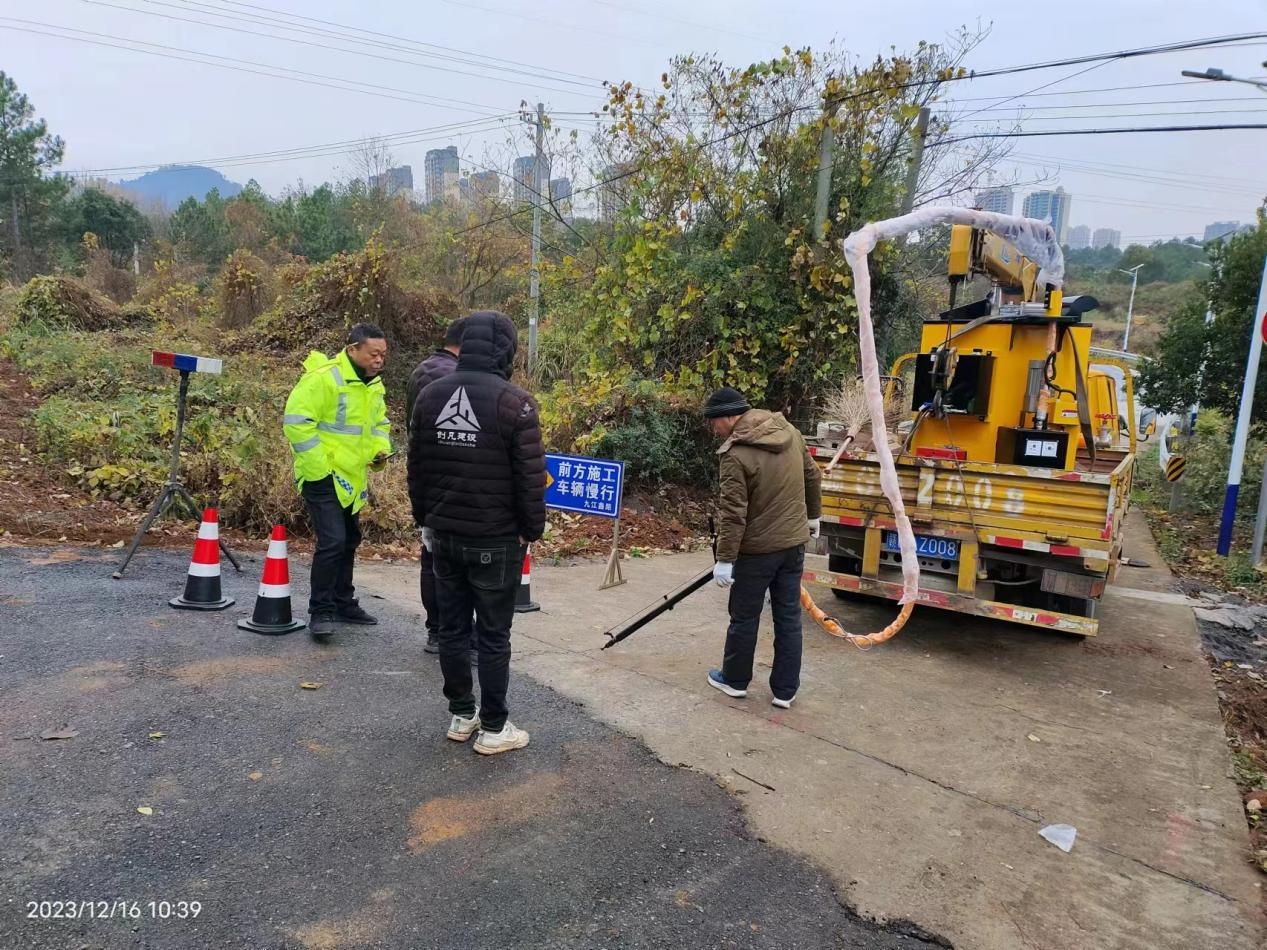

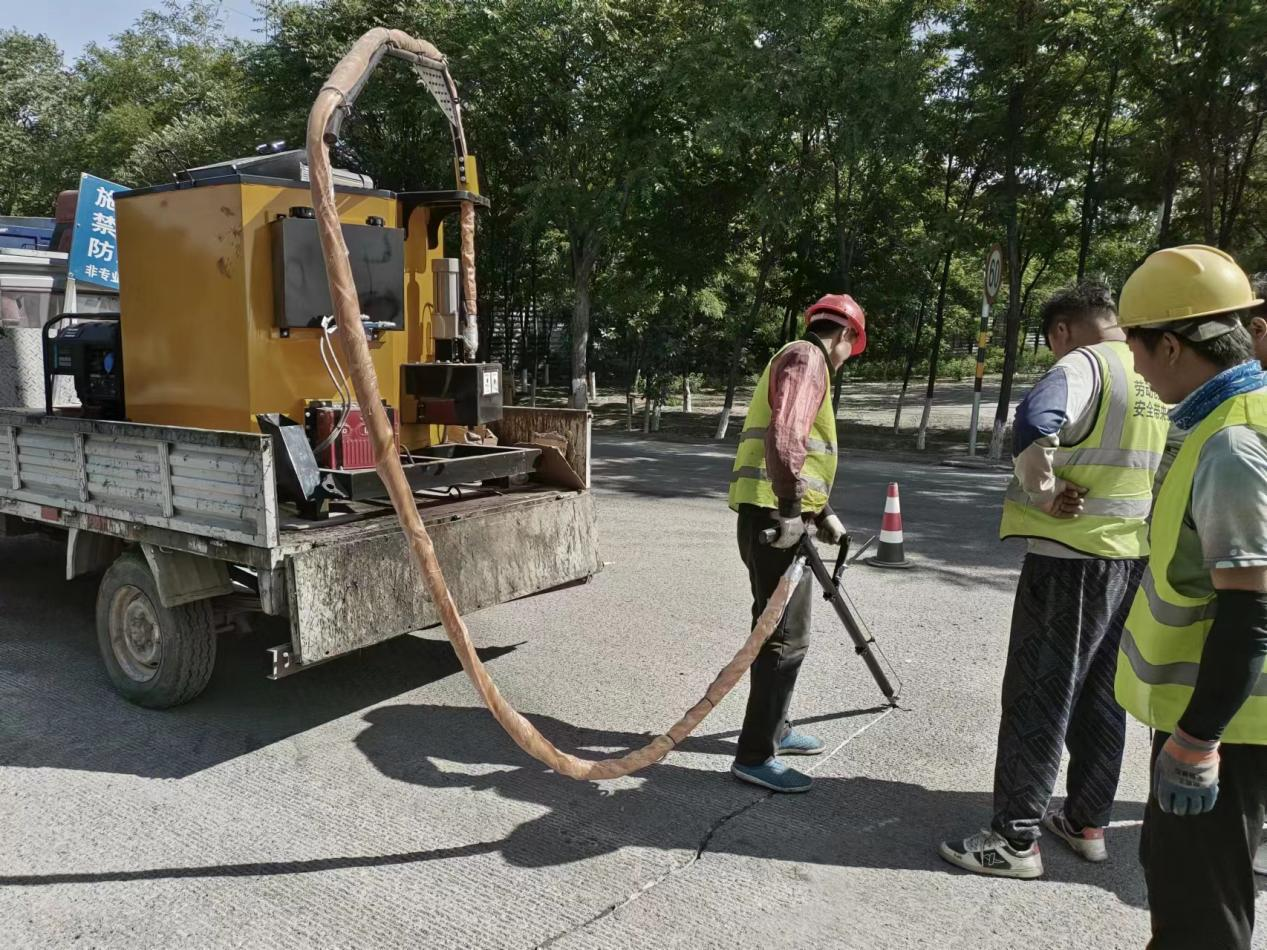

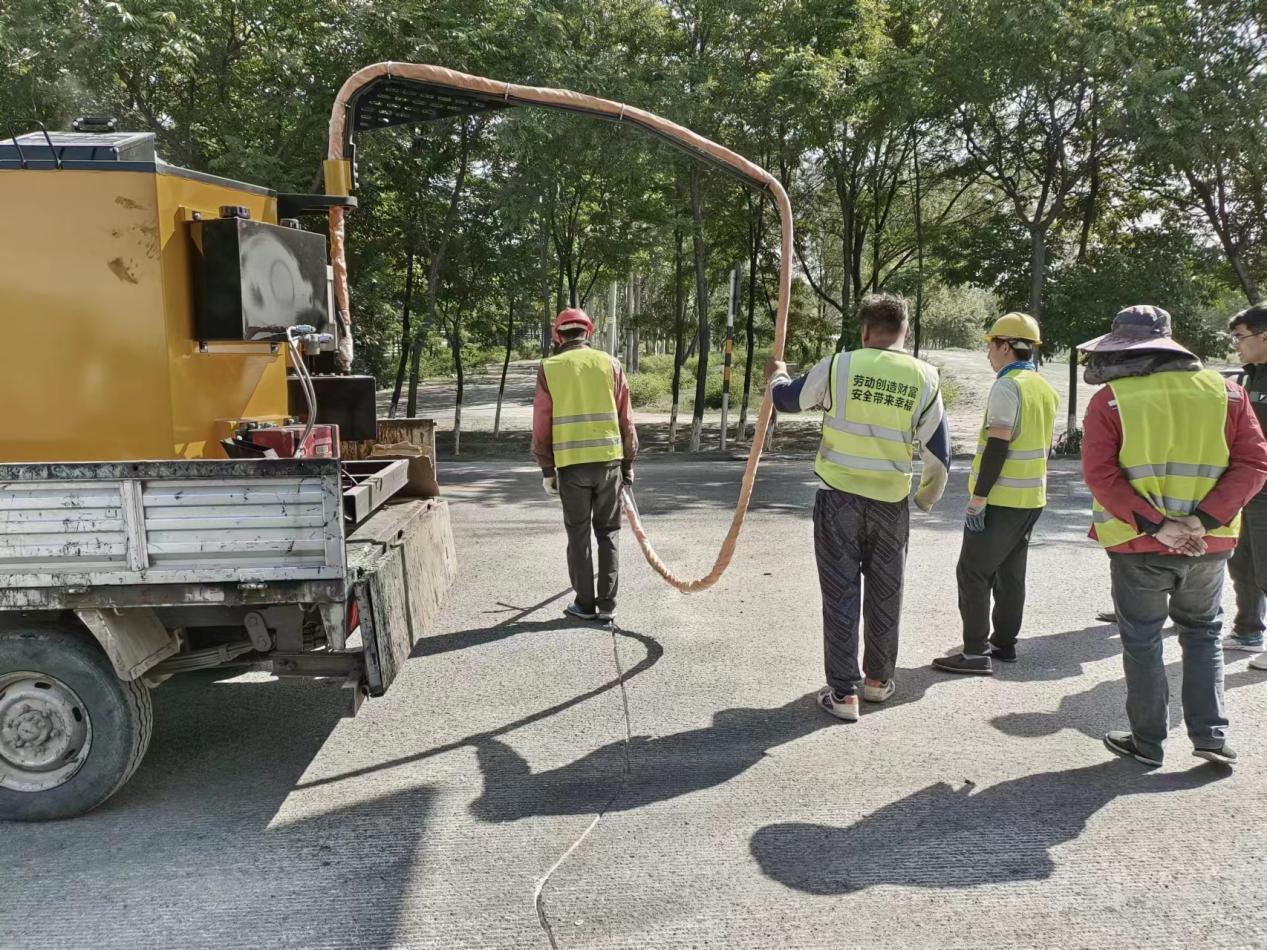

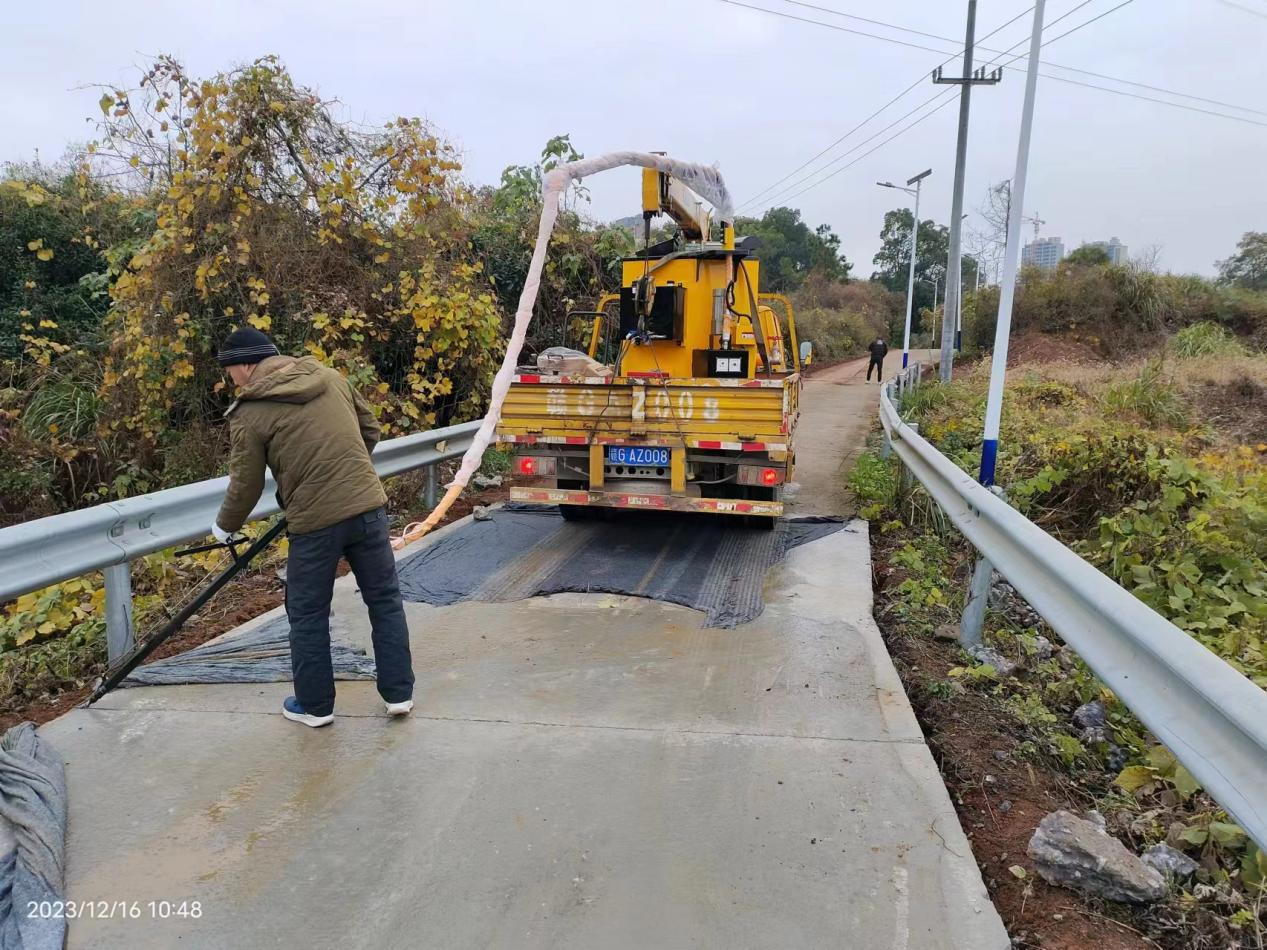

Specially used for cracks on roads such as highways, national and provincial roads, county and township roads, urban roads and airports, as well as new cracks after major and medium repairs. After slotting with a slotting machine, the road seam glue is used to fill the seams to ensure the overall performance of the road and extend the service life of the highway.
/ LZD- 02 / Performance advantages
1. Large-volume silo avoids multiple feedings, and cooperates with trolley operations to ensure construction continuity.
2. The rear wheels use heavy-duty load-bearing wheels, the equipment has a low center of gravity, and feeding saves physical effort.
3. The feeding port is designed to prevent splashing and scalding to reduce safety hazards.
4. The discharge pump is heated by thermal oil, and the constant temperature effect is good.
5. The car-mounted seam filling machine is easy to transfer, and the construction is convenient and time-saving and labor-saving.
6. The temperature centralized control box can display and adjust the temperature of the heat transfer oil, material temperature and caulking hose in a timely manner. The temperature display is intuitive and accurate.
7. Caulking gun: The original electric control switch design on the caulking gun handle can remotely control the material pump to reduce the waste of sealant.
8. Discharge hose: It can rotate freely 270 degrees as needed, with a longer service life. The high bending resistance of the hose fully meets the actual work needs of horizontal and vertical cracks in road maintenance construction, ensuring the maximum construction area.
/ LZD- 03 / Basic parameters

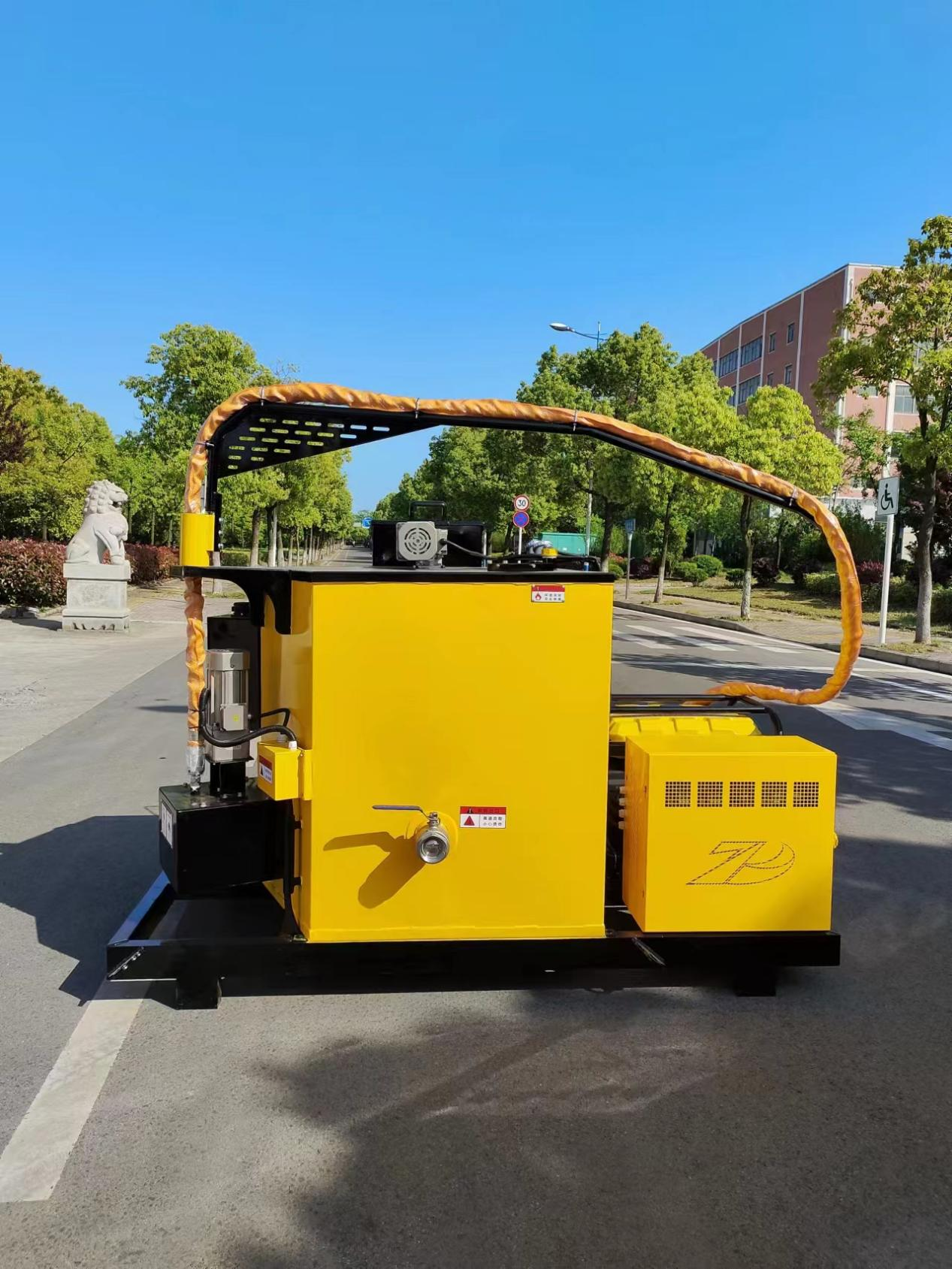

1. Dimensions: 2250*1250*1900
2. Machine weight: 780kg
3. Travel mode: vehicle-mounted

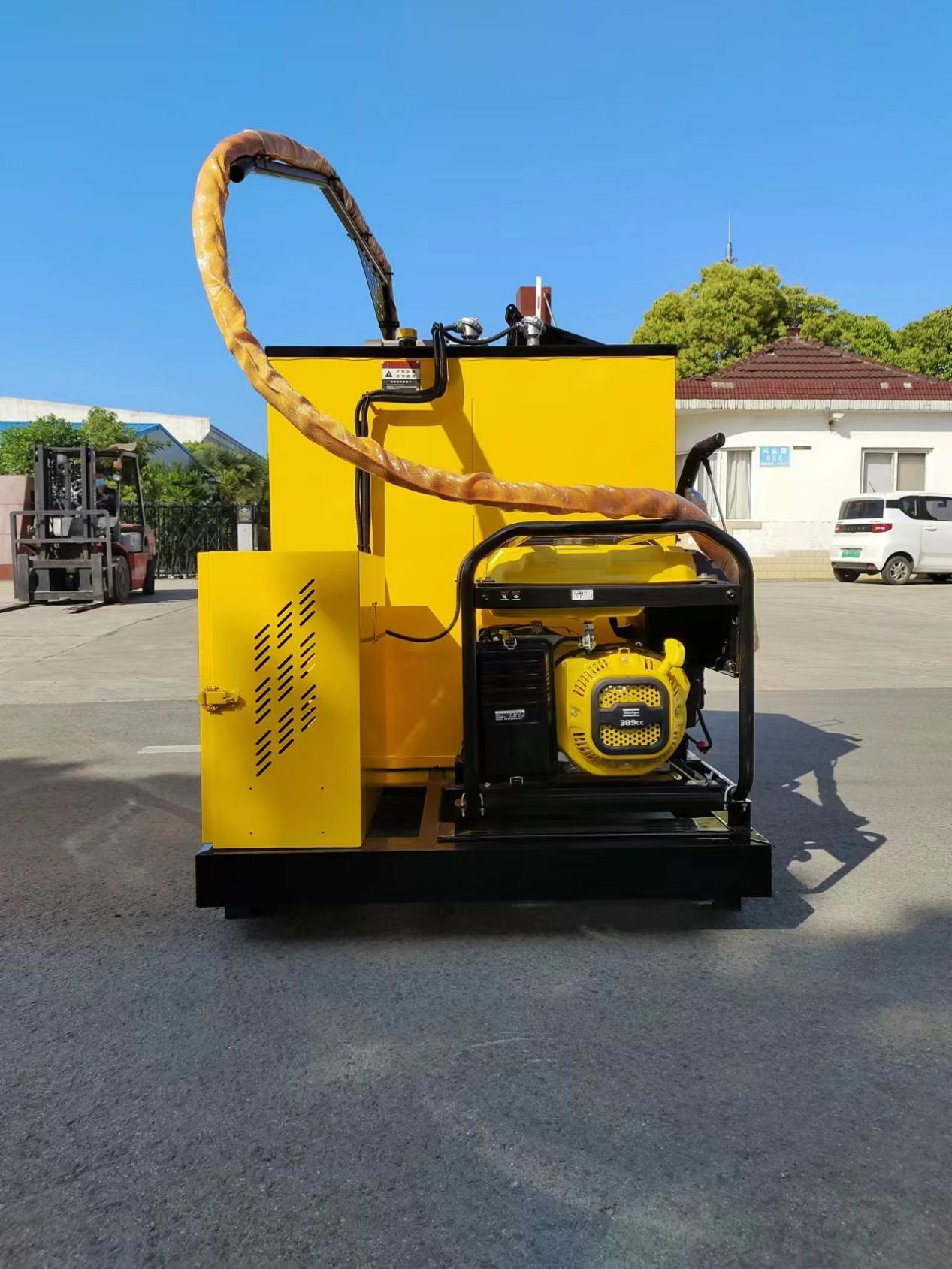

4. Generator set: Atlas 5KW, providing sufficient power for equipment operation
5. Indicator light: can visually display whether the parts of each part are working normally
6. Electrical control cabinet: temperature control instrument centralized display, equipment operation, simple and convenient
/ LZD- 04 / Hot melt kettle
1. The closed box body welded by steel plates is divided into insulation layer, heating layer and heat transfer oil layer. The silo body is wrapped with ★60mm thick aluminum silicate insulation cotton, which can slow down the temperature of the caulking material.
2. The silo has a capacity of 500L and is equipped with a vertical double-blade stirrer, which can rotate freely at 360°, stir evenly, heat quickly, and is more intelligent. It uses 60L of thermal oil and is heated by a diesel burner. The thermal oil is used as a heat transfer medium to absorb the heat from the heating layer and indirectly heat the material, thus preventing material aging.
/ LZD- 05 / Heating System
1. Burner: Italian Riello brand, burning heat 50,000 kcal, rear-mounted for easy maintenance, safe and reliable away from gasoline generator sets
2. Temperature control: Autonics instrument, temperature control range 0-400℃, automatic constant temperature control
3. Temperature display: LCD color display (clear display under strong light)
4. Diesel tank: 30L, mechanical independent oil level display
5. Chimney: unique windproof design, effectively prevent burner backfire
/ LZD- 06 / Discharging System
1. Discharging motor: 750w variable frequency motor, overload protection
2. Stirring motor: 750w reduction motor, two-way stirring
3. Discharging hose: 6 meters
4. Caulking gun: 1M
5. Gear pump: flow rate 33.3L/min, to ensure the discharging speed, heat transfer oil heat transfer, the material inside the pump body melts quickly
6. Discharge port: This design is used with a caulking trolley to achieve multi-purpose use of one machine
7. Discharge nozzle: square and round scraper, round scraper, large scraper, fine discharge nozzle, you can choose the appropriate discharge nozzle according to road conditions and usage habits
8. Speed regulator: digital LCD display, can accurately adjust the discharge speed, effectively reduce material waste
